SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max:
1.7 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
TLF50281ELXUMA3 Frequently Asked Questions (FAQs)
Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
The internal ESD protection of the TLF50281ELXUMA3 can affect the system-level ESD design. It's essential to consider the device's ESD protection capabilities when designing the system-level ESD protection to avoid overvoltage stress and ensure reliable operation.
To troubleshoot issues related to the device's overcurrent protection, check the device's fault pin, monitor the current sense resistor, and verify that the device is properly configured and powered. Consult the datasheet and application notes for guidance on troubleshooting and fault detection.
The quiescent current of the TLF50281ELXUMA3 can impact the system's power consumption, especially in low-power or battery-powered applications. Consider the device's quiescent current when designing the system's power budget and optimizing power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLF50281ELXUMA3 Overview

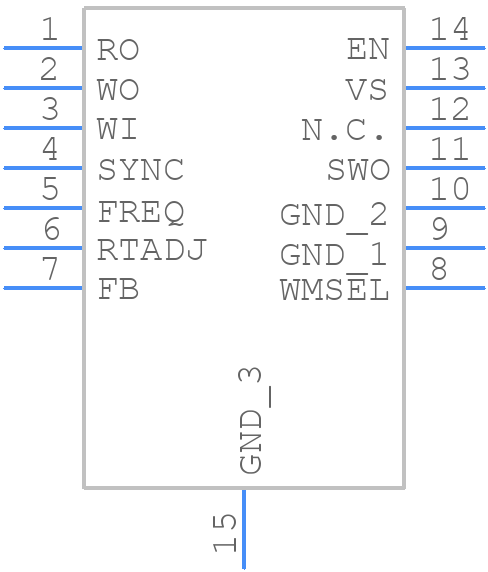

Use the download button to access the TLF50281ELXUMA3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLF50,
or try a keyword search, such as Switching Regulator or Controllers
