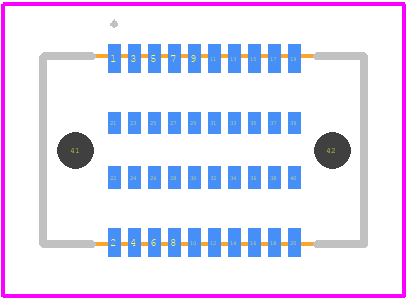

PCB Footprints
TLH-010-0.50-G-D-A - SAMTEC PCB footprint - Other - Other - TLH-010-0.50-G-D-A-1
click to zoom
3D Models
TLH-010-0.50-G-D-A - SAMTEC - 3D model - Other - TLH-010-0.50-G-D-A-1
click to zoom

TLH-010-0.50-G-D-A Details

  • Manufacturer Part Number:

    TLH-010-0.50-G-D-A

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Costa Rica, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

TLH-010-0.50-G-D-A Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TLH-010-0.50-G-D-A is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the TLH-010-0.50-G-D-A is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The TLH-010-0.50-G-D-A has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the TLH-010-0.50-G-D-A is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of TLH-010-0.50-G-D-A connectors is 4-6 weeks, depending on the quantity and availability. However, it's recommended to check with Samtec Inc or authorized distributors for the most up-to-date lead times.
