TLN6338M004R0055 - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD Tol 20% Pulse Cap Pulse Cap

Download TLN6338M004R0055 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLN6338M004R0055 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

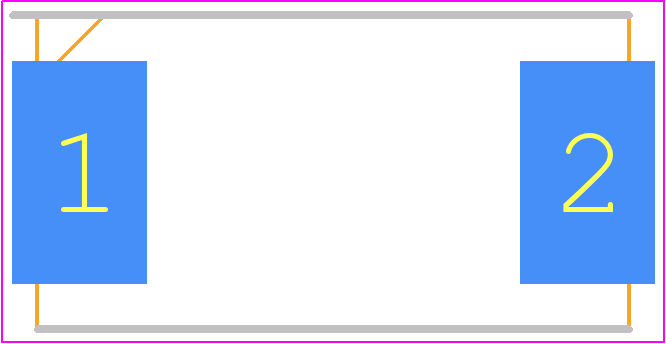

TLN6338M004R0055 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 5831-8
click to zoom
3D Models
TLN6338M004R0055 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 5831-8
click to zoom

TLN6338M004R0055 Details

  • Manufacturer Part Number:

    TLN6338M004R0055

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    3300 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    55 mΩ

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.132 mA

  • Length:

    14.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    4 V

  • Ripple Current:

    818 mA

  • Size Code:

    5831

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    WRAPAROUND

  • Width:

    7.8 mm
