TLP172AM(TPR,E - Toshiba

Description: MOSFET Output Optocouplers Photorelay 1-Form-A VOFF=60V 0.5A 2Ohm

Download TLP172AM(TPR,E Model

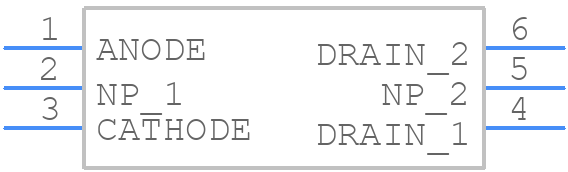

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP172AM(TPR,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP172AM(TPR,E
click to zoom
3D Models
TLP172AM(TPR,E - Toshiba  - 3D model - Small Outline Packages - TLP172AM(TPR,E
click to zoom

TLP172AM(TPR,E Details

  • Manufacturer Part Number:

    TLP172AM(TPR,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-6, 4 PIN

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2016-06-02

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.325 A

  • On-state Resistance-Max:

    2 Ω

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.3 mm

  • Overall Length:

    4.55 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP172AM(TPR,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP172AM is 4.5V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum current rating for the TLP172AM is 1.5A, but it is recommended to operate within the recommended operating current range of 0.5A to 1.2A for optimal performance and reliability.
  • To protect the TLP172AM from ESD, it is recommended to follow proper handling and storage procedures, such as using anti-static bags or tubes, and to implement ESD protection circuits in the system design.
  • The typical turn-on and turn-off time for the TLP172AM is around 100ns, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP172AM(TPR,E Overview

Use the download button to access the TLP172AM(TPR,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP17, or try a keyword search, such as Solid State Relays
