TLP175A(E(T - Toshiba

Description: Photocoupler, MOSFET, 1a, 4pin SO6

Download TLP175A(E(T Model

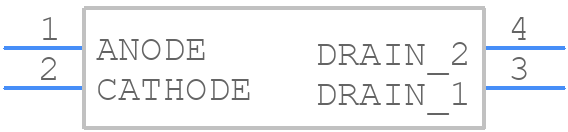

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

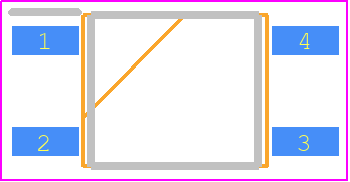

TLP175A(E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP175A(E(T-1
click to zoom
3D Models
TLP175A(E(T - Toshiba  - 3D model - Small Outline Packages - TLP175A(E(T-1
click to zoom

TLP175A(E(T Details

  • Manufacturer Part Number:

    TLP175A(E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-6/4

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.002 A

  • Control Voltage:

    1.1 V

  • Forward Current-Max:

    0.015 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • On-state Resistance-Max:

    50 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.3 mm

  • Overall Length:

    4.55 mm

  • Surface Mount:

    YES
