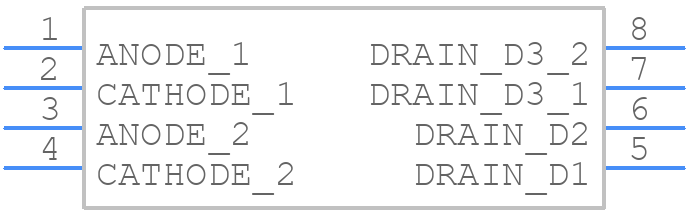

TLP222A-2(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP222A-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP222A-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP222A-2(F) Details

  • Manufacturer Part Number:

    TLP222A-2(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.3 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    2 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.65 mm

  • Overall Length:

    9.66 mm

  • Response Time-Max:

    0.002 s

  • Surface Mount:

    NO
