TLP222A-2 - Toshiba

Description: TOSHIBA - TLP222A-2 - OPTOCOUPLER, GATE DRIVER, 2.5KV, DIP-8

Download TLP222A-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

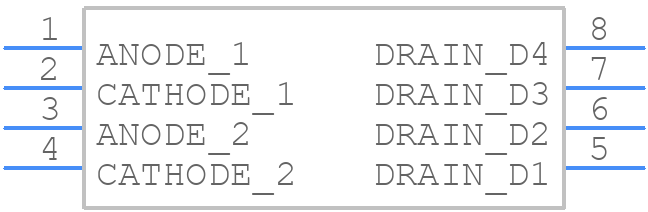

TLP222A-2 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP222A-2 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S_1
click to zoom
3D Models
TLP222A-2 - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S_1
click to zoom

TLP222A-2 Details

  • Manufacturer Part Number:

    TLP222A-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.5 A

  • On-state Resistance-Max:

    2 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    6.4 mm

  • Surface Mount:

    NO

TLP222A-2 Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the TLP222A-2 is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the input and output traces to reduce EMI.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the TLP222A-2, use a suitable heat sink, and ensure good thermal conductivity between the device and the PCB.
  • The maximum allowable voltage that can be applied to the input of the TLP222A-2 is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The TLP222A-2 is suitable for high-frequency applications up to 1 MHz. However, it's essential to consider the device's bandwidth, rise time, and fall time when designing the circuit to ensure proper operation.
  • The correct current-limiting resistor for the TLP222A-2 depends on the input voltage, desired current, and the device's forward voltage drop. A general rule of thumb is to choose a resistor that limits the current to 10-20 mA.
