Part Image

TLP222G-2(F) - Toshiba

Description: Solid State SPST-NO (1 Form A) x 2 8-DIP (0.300", 7.62mm)

Download TLP222G-2(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

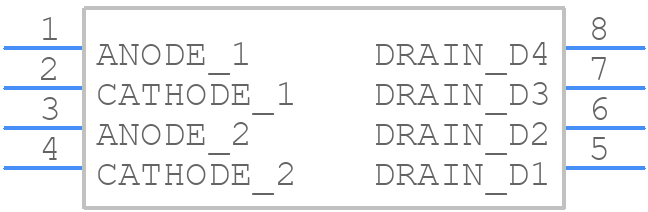

Symbol
TLP222G-2(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP222G-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S_2023
click to zoom
3D Models
TLP222G-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S_2023
click to zoom

TLP222G-2(F) Details

  • Manufacturer Part Number:

    TLP222G-2(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.3 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    50 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.65 mm

  • Overall Length:

    9.66 mm

  • Response Time-Max:

    0.001 s

  • Surface Mount:

    NO

TLP222G-2(F) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP222G-2(F) is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP222G-2(F) is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the LED current-limiting resistor can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical response time of the TLP222G-2(F) is 10μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP222G-2(F) Overview

Use the download button to access the TLP222G-2(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP22, or try a keyword search, such as Solid State Relays
