TLP224G-2(F) - Toshiba

Description: SSR RELAY SPST-NO 120MA 0-350V

Download TLP224G-2(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

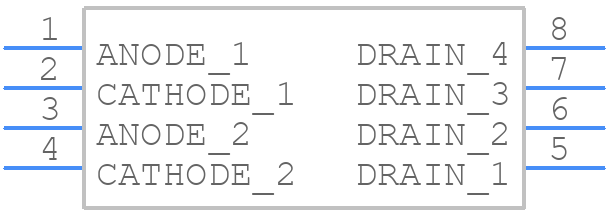

Symbol
TLP224G-2(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP224G-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP224G-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP224G-2(F) Details

  • Manufacturer Part Number:

    TLP224G-2(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    9.66 mm

  • Surface Mount:

    NO

TLP224G-2(F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a ground plane underneath the device, and keeping the input and output traces as short as possible to minimize noise and signal degradation.
  • The TLP224G-2(F) requires a bias voltage of 5V ± 10% between the VCC and GND pins. Ensure that the bias voltage is stable and within the recommended range to maintain optimal performance.
  • The maximum allowable power dissipation for the TLP224G-2(F) is 250mW. Exceeding this limit may cause the device to overheat and potentially fail.
  • The TLP224G-2(F) is rated for operation up to 85°C. However, it's recommended to derate the device's power dissipation and ensure proper heat sinking to prevent overheating in high-temperature environments.
  • Toshiba recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the TLP224G-2(F) from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP224G-2(F) Overview

Use the download button to access the TLP224G-2(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP22, or try a keyword search, such as Solid State Relays
