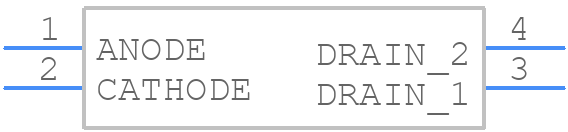

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

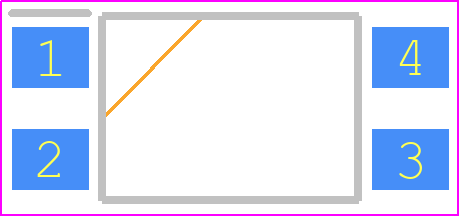

PCB Footprints
TLP241A(TP1,F(O - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5B201S_2023
click to zoom
3D Models
TLP241A(TP1,F(O - Toshiba  - 3D model - Small Outline Packages - 11-5B201S_2023
click to zoom

TLP241A(TP1,F(O Details

  • Manufacturer Part Number:

    TLP241A(TP1,F(O

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    2 A

  • On-state Resistance-Max:

    0.15 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.25 mm

  • Overall Length:

    6.4 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP241A(TP1,F(O Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP241A is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet.
  • To minimize EMI, it is recommended to use a ground plane, keep the PCB layout compact, and use shielding if necessary. Additionally, the datasheet provides guidelines for PCB layout and component placement.
  • Yes, the TLP241A is suitable for high-speed data transmission applications, with a maximum data transfer rate of 100 Mbps.
  • To protect the TLP241A from ESD, it is recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in the application.
