TLP3100(TP,F) footprint, schematic symbol and 3D model by Toshiba

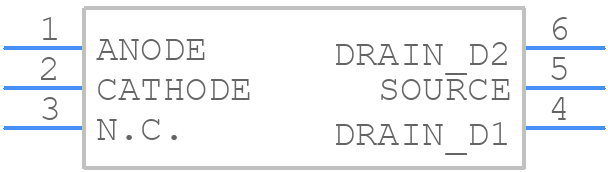

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP3100(TP,F)
Part Number TLP3100(TP,F)
Manufacturer Toshiba
Pin Count 6
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-7C1-1
Released Date Apr 12, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP3100(TP,F) Details

Manufacturer Part Number:
TLP3100(TP,F)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
SOP-6
Reach Compliance Code:
Unknown
HTS Code:
8541.40.95.00
Factory Lead Time:
12 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
1
Control Current:
0.005 A
Control Voltage:
1.18 V
Input Type:
DC
Isolation Voltage-Max:
1500 V
Mounting Feature:
SURFACE MOUNT
On-State Current-Max:
2.5 A
On-state Resistance-Max:
0.05 Ω
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-20 °C
Output Circuit Type:
MOSFET
Overall Height:
2.1 mm
Overall Length:
6.3 mm
Surface Mount:
YES

TLP3100(TP,F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP3100 is 4.5V to 30V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input signal is within the recommended voltage range.
The TLP3100 can sink or source up to 100mA of current, but it's recommended to limit the current to 50mA for reliable operation.
To handle thermal considerations, ensure good heat dissipation by providing a heat sink or a thermal pad, and avoid operating the device near its maximum junction temperature (150°C).
For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the input and output traces short and separate to minimize noise and crosstalk.

Trust Checks

Community Provided

System Verified

Community Approved

TLP3100(TP,F) Overview

Use the download button to access the TLP3100(TP,F) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP31, or try a keyword search, such as Solid State Relays
