TLP3102(TP,F) footprint, schematic symbol and 3D model by Toshiba

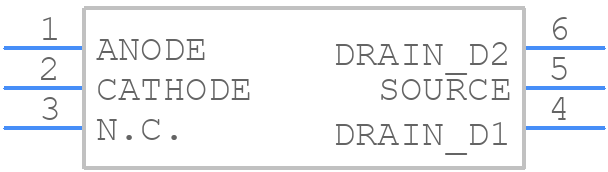

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP3102(TP,F)
Part Number TLP3102(TP,F)
Manufacturer Toshiba
Pin Count 6
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TLP3109(F
Released Date Feb 25, 2021
Last Modified Date Aug 29, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TLP3102(TP,F) Details

Manufacturer Part Number:
TLP3102(TP,F)
Part Life Cycle Code:
End Of Life
Package Description:
SOP-6
HTS Code:
8541.40.95.00
Factory Lead Time:
20 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
1
Additional Feature:
UL APPROVED
Configuration:
SINGLE WITH BUILT-IN DIODE
Control Current:
0.02 A
Control Voltage:
1.18 V
Forward Current-Max:
0.02 A
Input Type:
DC
Isolation Voltage-Max:
1500 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
On-State Current-Max:
2.5 A
On-state Resistance-Max:
0.06 Ω
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-20 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT SSR
Output Circuit Type:
MOSFET
Overall Height:
2.1 mm
Overall Length:
6.3 mm
Surface Mount:
YES

TLP3102(TP,F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP3102 is 4.5V to 30V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input voltage is within the recommended operating range.
The TLP3102 can sink or source up to 100mA of current.
To handle thermal considerations, ensure good heat dissipation by providing a heat sink or a thermal pad, and avoid operating the device near its maximum junction temperature (150°C).
The internal pull-up resistor is used to pull the output high when the input is open or disconnected, ensuring a defined output state.

Trust Checks

Community Provided

System Verified

Community Approved

TLP3102(TP,F) Overview

Use the download button to access the TLP3102(TP,F) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP31, or try a keyword search, such as Solid State Relays
