A good PCB layout practice is to keep the input and output traces separate, use a ground plane, and minimize the loop area of the input and output traces to reduce EMI. Additionally, placing a 10nF capacitor between the VCC and GND pins can help reduce noise.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input signal is within the recommended voltage range (0.5V to 5.5V) and the output is properly terminated.
The maximum cable length supported by the TLP3120(F) depends on the specific application and the type of cable used. As a general guideline, the TLP3120(F) can support cable lengths up to 10 meters (33 feet) for standard Category 5e cables.
The TLP3120(F) is rated for operation up to 85°C (185°F). However, it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for specific derating guidelines.
To troubleshoot issues with the TLP3120(F), start by verifying the power supply voltage, checking for proper input signal levels, and ensuring the output is properly terminated. Use an oscilloscope to check the input and output waveforms for any signs of distortion or noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3120(F) Overview

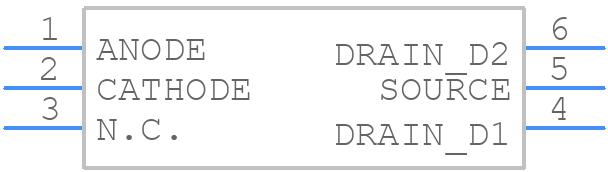

Use the download button to access the TLP3120(F) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP31,
or try a keyword search, such as Solid State Relays
