TLP3122A(TPL,E - Toshiba

Description: MOSFET Output Optocouplers Photorelay 1-Form-A VOFF=60V 1.4A .25Ohm

Download TLP3122A(TPL,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

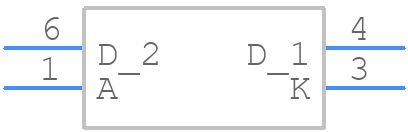

TLP3122A(TPL,E - Toshiba - PCB symbol
click to zoom
PCB Footprints

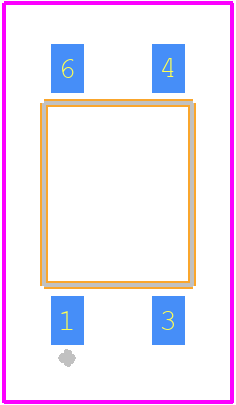

TLP3122A(TPL,E - Toshiba PCB footprint - Other - Other - 11-4M1S (4-PIN sop)
click to zoom
3D Models
TLP3122A(TPL,E - Toshiba - 3D model - Other - 11-4M1S (4-PIN sop)
click to zoom

TLP3122A(TPL,E Details

  • Manufacturer Part Number:

    TLP3122A(TPL,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    1.4 A

  • On-state Resistance-Max:

    0.25 Ω

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.3 mm

  • Overall Length:

    4.55 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP3122A(TPL,E Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP3122A involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input pin should be biased to a voltage between 2.5V and 5V, and the output pin should be connected to a load impedance of 1kΩ or higher.
  • The maximum allowable power dissipation for the TLP3122A is 500mW. Exceeding this limit can cause the device to overheat and potentially fail.
  • The TLP3122A is rated for operation up to 85°C. However, it's recommended to derate the device's power dissipation by 50% for every 10°C above 70°C to ensure reliable operation.
  • To troubleshoot issues with the TLP3122A, check the power supply voltage, input signal integrity, and output load impedance. Verify that the device is properly biased and that the PCB layout is optimal. Use an oscilloscope to inspect the input and output waveforms for any anomalies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP3122A(TPL,E Overview

Use the download button to access the TLP3122A(TPL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP31, or try a keyword search, such as Solid State Relays
