TLP3543A(TP1,F - Toshiba

Description: MOSFET Output Optocouplers Photorelay 5A 30V 2500Vrms 1100pF

Download TLP3543A(TP1,F Model

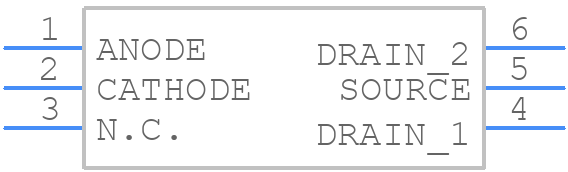

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP3543A(TP1,F - Toshiba PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 11-7A801S
click to zoom
3D Models
TLP3543A(TP1,F - Toshiba  - 3D model - SOT23 (6-Pin) - 11-7A801S
click to zoom

TLP3543A(TP1,F Details

  • Manufacturer Part Number:

    TLP3543A(TP1,F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.5 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    5 A

  • On-state Resistance-Max:

    0.04 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    6.4 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP3543A(TP1,F Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP3543A involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins.
  • To ensure proper power-on and power-off of the TLP3543A, it's recommended to use a soft-start circuit to limit the inrush current during power-on, and to use a power-off sequence that slowly ramps down the voltage to prevent damage to the device.
  • The maximum allowable voltage on the input pins of the TLP3543A is 5.5V, exceeding which may cause damage to the device. It's recommended to use voltage limiting resistors or clamping diodes to prevent overvoltage conditions.
  • To handle ESD protection for the TLP3543A, it's recommended to use ESD protection devices such as TVS diodes or ESD protection ICs on the input and output lines, and to follow proper handling and storage procedures to prevent ESD damage.
  • The recommended operating temperature range for the TLP3543A is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
