A good PCB layout for the TLP3545(F) involves placing the device close to the photodiode, using a ground plane, and minimizing the length of the signal traces. Additionally, using a shielded cable and a common mode choke can help reduce EMI.
The resistor values for the TLP3545(F) can be calculated using the formula: R1 = (VCC - VOUT) / IOUT, where R1 is the resistor value, VCC is the supply voltage, VOUT is the desired output voltage, and IOUT is the desired output current.
The maximum allowable voltage on the VCC pin of the TLP3545(F) is 5.5V. Exceeding this voltage may damage the device.
The TLP3545(F) is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. It is recommended to use a heat sink or other cooling measures to keep the device within its operating temperature range.
To troubleshoot issues with the TLP3545(F) not responding to input signals, check the input signal level, frequency, and waveform to ensure they are within the device's specifications. Also, verify that the device is properly powered and that the output is not short-circuited.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3545(F) Overview

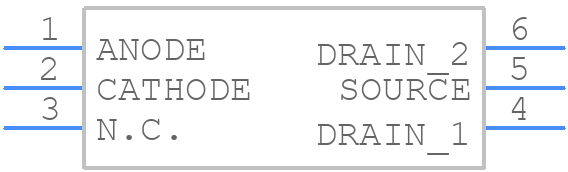

Use the download button to access the TLP3545(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Solid State Relays
