A good PCB layout for the TLP3545A involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins.
To ensure proper power-on and power-off of the TLP3545A, it's recommended to use a soft-start circuit to limit the inrush current during power-on, and to use a power-down sequence that turns off the output stage before the input stage.
The TLP3545A has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum ratings.
To troubleshoot issues with the TLP3545A, start by checking the input and output voltages, then verify the device is properly powered on and configured. Check for overheating, and ensure the device is not operating near its maximum ratings. If issues persist, consult the datasheet and application notes for further guidance.
The TLP3545A has built-in ESD protection, but it's still recommended to take precautions during handling and assembly to prevent damage. Use an anti-static wrist strap or mat, and avoid touching the device's pins or exposed internal components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3545A(TP1,F Overview

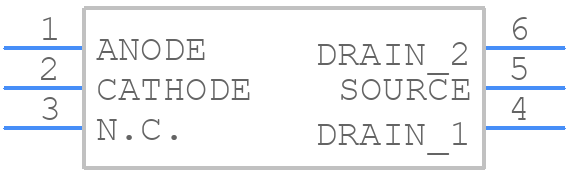

Use the download button to access the TLP3545A(TP1,F schematic symbol, PCB footprint, and 3D model.
