A good PCB layout for the TLP3546(F) involves placing the device close to the photodiode, using a ground plane, and minimizing the length of the signal traces. Additionally, using a shielded cable and a common mode choke can help reduce EMI.
The resistor values for the TLP3546(F) can be calculated using the formula: R1 = (VCC - VOUT) / IOUT, where R1 is the resistor value, VCC is the supply voltage, VOUT is the output voltage, and IOUT is the desired output current.
The maximum allowable voltage for the TLP3546(F) input pin is 5.5V, exceeding which may cause damage to the device.
The TLP3546(F) is rated for operation up to 85°C, but it can be used in high-temperature applications up to 125°C with some derating of the output current. However, it's essential to ensure that the device is properly heat-sinked and that the junction temperature is within the specified range.
To troubleshoot issues with the TLP3546(F), check the input voltage, output voltage, and output current. Ensure that the input voltage is within the specified range, and the output voltage is within the expected range. Also, check for any short circuits or open circuits in the output stage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3546(F) Overview

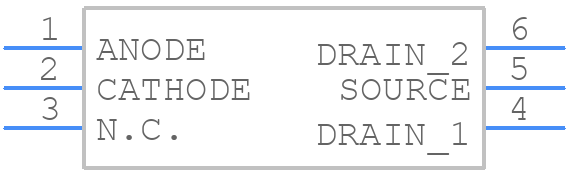

Use the download button to access the TLP3546(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Solid State Relays
