A good PCB layout for the TLP3546A involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VCC and GND pins.
To ensure proper power-on and power-off of the TLP3546A, it's recommended to use a soft-start circuit to limit the inrush current during power-on, and to use a power-off sequence that slowly ramps down the voltage to prevent damage to the device.
The TLP3546A has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing the ambient temperature.
To troubleshoot issues with the TLP3546A, start by checking the input and output voltages, and verifying that the device is properly powered on. Check for any signs of overheating, and verify that the device is properly soldered to the PCB. If issues persist, consult the datasheet and application notes for further guidance.
The TLP3546A has built-in ESD protection, but it's still recommended to take precautions during handling and assembly to prevent damage. Use an ESD wrist strap or mat, and avoid touching the device pins or PCB traces.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3546A(TP1,F(O Overview

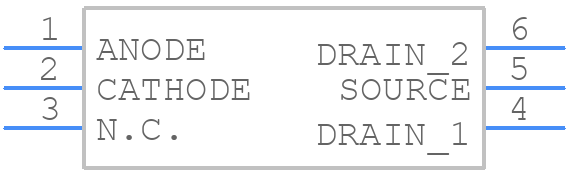

Use the download button to access the TLP3546A(TP1,F(O schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Solid State Relays
