TLP3546A(TP1,F - Toshiba

Description: MOSFET Output Optocouplers Photorelay 3.5A 100V 2500Vrms 450pF

Download TLP3546A(TP1,F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

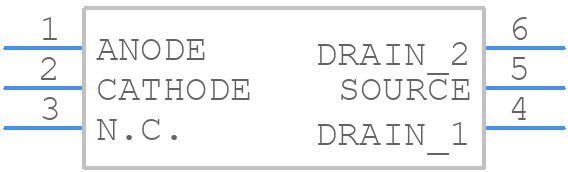

TLP3546A(TP1,F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP3546A(TP1,F - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-6
click to zoom
3D Models
TLP3546A(TP1,F - Toshiba - 3D model - Dual-In-Line Packages - PDIP-6
click to zoom

TLP3546A(TP1,F Details

  • Manufacturer Part Number:

    TLP3546A(TP1,F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2019-05-10

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.74

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.5 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    0.08 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.65 mm

  • Overall Length:

    6.4 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP3546A(TP1,F Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP3546A involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins.
  • To ensure proper power-on and power-off, it's recommended to use a soft-start circuit to limit the inrush current and prevent voltage drops. Additionally, a power-on reset circuit can be used to ensure the device is properly initialized.
  • The maximum allowable voltage on the input pins of the TLP3546A is 5.5V. Exceeding this voltage may cause damage to the device.
  • To handle ESD protection for the TLP3546A, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, proper PCB design and layout practices can help reduce the risk of ESD damage.
  • The recommended operating temperature range for the TLP3546A is -40°C to 125°C. Operating the device outside of this range may affect its performance and reliability.
