A good PCB layout for the TLP3547(F) involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins.
To ensure proper power-on and power-off of the TLP3547(F), it's recommended to use a soft-start circuit to limit the inrush current and prevent voltage drops. Additionally, a power-on reset circuit can be used to ensure the device is properly initialized.
The TLP3547(F) has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, reducing the ambient temperature, and minimizing the device's power dissipation.
To troubleshoot issues with the TLP3547(F), start by checking the input and output voltages, and ensuring the device is properly powered on. Then, check the output current and voltage ripple, and verify that the device is not overheating. If issues persist, consult the datasheet and application notes for further guidance.
The TLP3547(F) is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, it's recommended to use a device with a higher reliability rating, such as a device with a higher temperature rating or a device that meets specific industry standards (e.g. automotive, aerospace, medical).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3547(F Overview

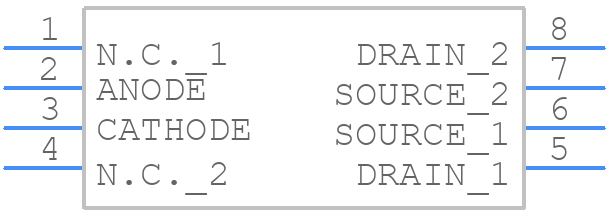

Use the download button to access the TLP3547(F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Solid State Relays
