The recommended PCB layout for the TLP3547(TP1,F) involves keeping the input and output traces as short as possible, using a solid ground plane, and placing a 0.1uF bypass capacitor between VCC and GND. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TLP3547(TP1,F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
The maximum operating temperature range for the TLP3547(TP1,F) is -40°C to 125°C. However, it's recommended to operate the device within the recommended operating temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the TLP3547(TP1,F) is designed to operate in high-vibration environments. However, it's recommended to follow proper mounting and soldering procedures to ensure the device is securely attached to the PCB and can withstand the vibration.
To troubleshoot issues with the TLP3547(TP1,F), start by checking the power supply voltage, input signal, and output signal. Use an oscilloscope to verify the signal waveforms and check for any signs of noise or distortion. Also, check the PCB layout and assembly for any errors or defects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3547(TP1,F(O Overview

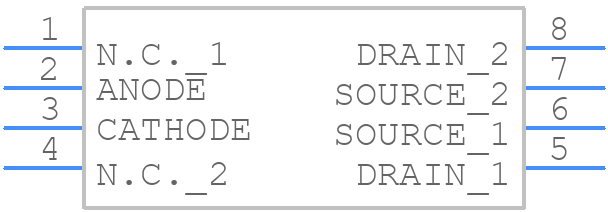

Use the download button to access the TLP3547(TP1,F(O schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Solid State Relays
