TLP3547(TP1,F - Toshiba

Description: Solid State Relay 30mA 48V 8-Pin DIP SMD T/R

Download TLP3547(TP1,F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

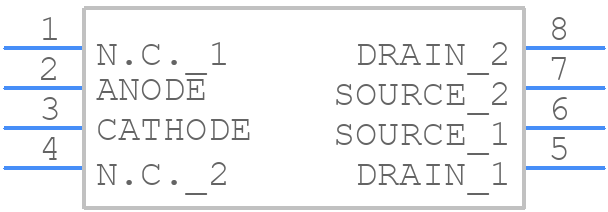

TLP3547(TP1,F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP3547(TP1,F - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP3547(TP1,F
click to zoom
3D Models
TLP3547(TP1,F - Toshiba - 3D model - Small Outline Packages - TLP3547(TP1,F
click to zoom

TLP3547(TP1,F Details

  • Manufacturer Part Number:

    TLP3547(TP1,F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.5 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    5 A

  • On-state Resistance-Max:

    0.05 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.25 mm

  • Overall Length:

    9.66 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

TLP3547(TP1,F Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP3547 involves placing the device close to the photodiode, using a ground plane to reduce noise, and keeping the input and output traces separate to minimize crosstalk.
  • To ensure stability, ensure that the input voltage is within the recommended range, the output capacitor is properly sized, and the device is operated within the recommended temperature range.
  • The maximum allowable voltage on the output pin is the same as the supply voltage (VCC), which is 5.5V for the TLP3547.
  • Yes, but you may need to adjust the input resistor (RIN) and/or the feedback resistor (RF) to optimize the performance of the device with the specific photodiode used.
  • The TLP3547 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
