Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal impedance to ensure high-speed signal integrity and reduce electromagnetic interference (EMI). A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The TLP4197G(F) requires a stable power supply with a minimum of 3.3V and a maximum of 5V. Decoupling capacitors (e.g., 0.1uF and 10uF) should be placed close to the device to filter out noise and ensure stable operation.
The maximum cable length supported by the TLP4197G(F) depends on the specific application and signal frequency. As a general guideline, Toshiba recommends keeping cable lengths below 10 meters for high-speed signals (e.g., HDMI) and below 30 meters for lower-speed signals (e.g., USB).
Toshiba recommends using oscilloscopes and signal analyzers to troubleshoot signal integrity issues. For device malfunction, check the power supply, decoupling, and PCB layout. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the TLP4197G(F) has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid blocking airflow around the device. Follow the recommended thermal design guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP4197G(F) Overview

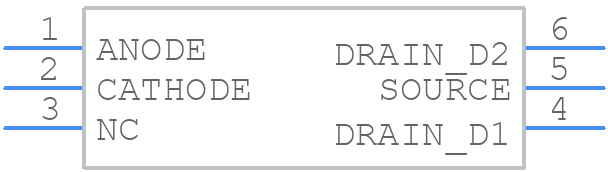

Use the download button to access the TLP4197G(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP41,
or try a keyword search, such as Solid State Relays
