TLP4227G-2(F) - Toshiba

Description: Toshiba TLP4227G-2(F) AC Input MOSFET Output Dual Optocoupler, Through Hole, 8-Pin DIP

Download TLP4227G-2(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

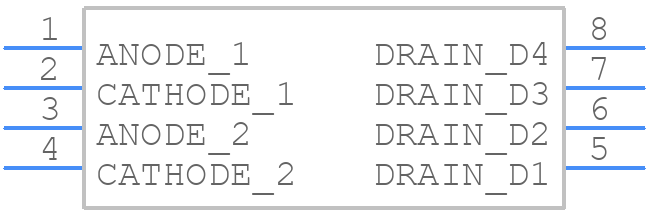

TLP4227G-2(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP4227G-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8_1+
click to zoom
3D Models
TLP4227G-2(F) - Toshiba - 3D model - Dual-In-Line Packages - DIP-8_1+
click to zoom

TLP4227G-2(F) Details

  • Manufacturer Part Number:

    TLP4227G-2(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • On-state Resistance-Max:

    25 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    9.66 mm

  • Surface Mount:

    NO

TLP4227G-2(F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and electromagnetic interference. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
  • Toshiba recommends using X7R or X5R ceramic capacitors with a capacitance value of 10uF to 22uF for the input and output capacitors. The capacitor selection should be based on the specific application requirements and operating conditions.
  • To troubleshoot issues with the TLP4227G-2(F), start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is operated within its specified operating conditions. Use oscilloscopes and other diagnostic tools to identify and isolate the problem.
  • Yes, the TLP4227G-2(F) is compatible with lead-free soldering processes. Toshiba has qualified the device for lead-free soldering according to the JEDEC J-STD-020C standard.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP4227G-2(F) Overview

Use the download button to access the TLP4227G-2(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP42, or try a keyword search, such as Solid State Relays
