TLP597GA - Toshiba

Description: TOSHIBA - TLP597GA - OPTOCOUPLER, GATE DRIVER, 2.5KV, DIP-6

Download TLP597GA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

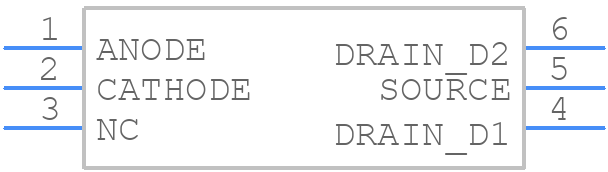

TLP597GA - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP597GA - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7A8S
click to zoom
3D Models
TLP597GA - Toshiba - 3D model - Dual-In-Line Packages - 11-7A8S
click to zoom

TLP597GA Details

  • Manufacturer Part Number:

    TLP597GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    40 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    7.12 mm

  • Surface Mount:

    NO
