TLP7820(TP4,E - Toshiba

Description: Optically Isolated Amplifiers COUPLER ISOLATION AMPLIFIER

Download TLP7820(TP4,E Model

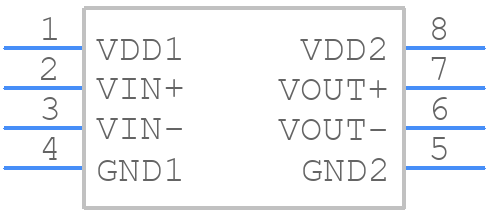

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP7820(TP4,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 8-SO5
click to zoom
3D Models
TLP7820(TP4,E - Toshiba  - 3D model - Small Outline Packages - 8-SO5
click to zoom

TLP7820(TP4,E Details

  • Manufacturer Part Number:

    TLP7820(TP4,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.23 MHz

  • Isolation Voltage-Min:

    5000 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Seated Height-Max:

    2.3 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    8.44

  • Voltage Gain-Min:

    7.95

  • Width:

    5.85 mm

TLP7820(TP4,E Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP7820 involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to use the recommended output capacitor value and type, and to place it close to the IC. Additionally, the input voltage should be within the recommended range, and the input capacitor should be of sufficient value to filter out noise.
  • The maximum ambient temperature range for the TLP7820 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.
  • Yes, the TLP7820 is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade ICs and has a high MTBF (Mean Time Between Failures) rating.
  • To protect the TLP7820 from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.
