A good PCB layout for the TLP7920 should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range (up to 125°C), use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance.
Handle the device by the body, not the leads, to prevent damage. Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and use anti-static packaging and handling procedures to prevent ESD damage.
To troubleshoot issues with the TLP7920, check the PCB layout and design for thermal and electrical issues, verify the input voltage and current, and use a thermal camera or thermometer to monitor the device temperature. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Yes, follow the recommended soldering profile and temperature guidelines to prevent damage to the device. Use a soldering iron with a temperature range of 200°C to 250°C, and avoid applying excessive force or pressure during soldering and rework.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

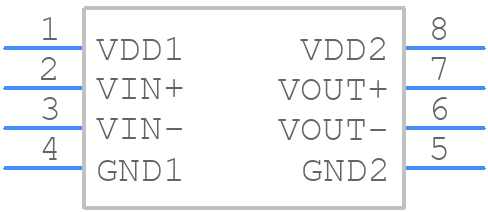

TLP7920(D4-TP1,F Overview
Use the download button to access the TLP7920(D4-TP1,F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP79,
or try a keyword search, such as Isolation Amplifiers
