TLR3A10KR0025FTDG - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Width .125 INCH | Product Height .65 MM | Product Length 6.35 MM | Product Width 3.18 MM | Product Height .025 INCH | Product Length .25 INCH | Electrical Characteristics: Power Rating 1 WATT | Resistance Value .0025 OHM | Resistance Class Up to 1kΩ | Passive Component Tolerance 1 PCT | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Element Type Metal Strip | Package Size Code 2512 | Resistor Type Current Sens

Download TLR3A10KR0025FTDG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLR3A10KR0025FTDG - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

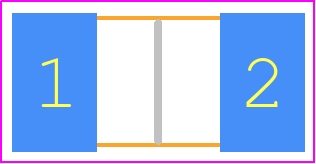

TLR3A10KR0025FTDG - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - TLR3A10KR0025FTDG
click to zoom
3D Models
TLR3A10KR0025FTDG - TE Connectivity - 3D model - Resistor Chip - TLR3A10KR0025FTDG
click to zoom

TLR3A10KR0025FTDG Details

  • Manufacturer Part Number:

    TLR3A10KR0025FTDG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    10 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.25

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.65 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR

  • Physical Dimension:

    6.4mm x 3.2mm x .6mm

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Resistance:

    0.0025 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    150 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    1.5811 V

TLR3A10KR0025FTDG Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the TLR3A10KR0025FTDG can be found in the TE Connectivity application note AN-1043, which provides a detailed layout and land pattern design guide.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the TE Connectivity soldering application note AN-1036. Additionally, use a solder with a melting point of 217°C to 220°C and a flux that is compatible with the component's termination finish.
  • The maximum operating temperature range for the TLR3A10KR0025FTDG is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • Yes, the TLR3A10KR0025FTDG is designed to withstand high-vibration environments. However, it's crucial to ensure that the component is properly secured to the PCB using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress and damage.
  • Handle the TLR3A10KR0025FTDG by the body, avoiding touching the leads or electrical contacts. Store the components in their original packaging or in a dry, ESD-protected environment to prevent moisture and electrostatic damage.
