TLRS157550ER0005FTDG - TE Connectivity

Description: TE Connectivity TLRS Series Metal Strip Surface Mount Fixed Resistor 1575 Case 0.5mΩ ±1% 5W ±100ppm/°C

Download TLRS157550ER0005FTDG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLRS157550ER0005FTDG - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

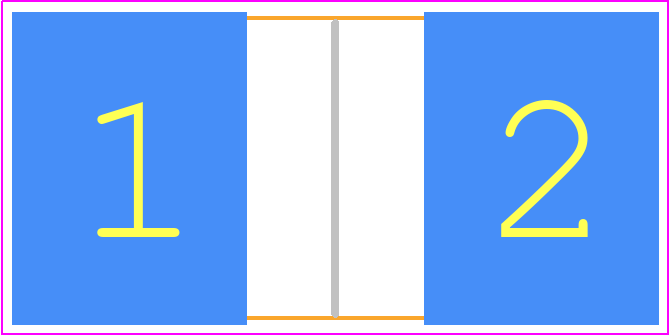

TLRS157550ER0005FTDG - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - TLRS157550ER0005FTDG
click to zoom
3D Models
TLRS157550ER0005FTDG - TE Connectivity - 3D model - Resistor Chip - TLRS157550ER0005FTDG
click to zoom

TLRS157550ER0005FTDG Details

  • Manufacturer Part Number:

    TLRS157550ER0005FTDG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR

  • Physical Dimension:

    15.2mm x 7.5mm x 1.06mm

  • Rated Power Dissipation (P):

    6 W

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    1575

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Tolerance:

    1%
