A good PCB layout for the TLS205B0EJV should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation in high-temperature environments, ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heatsink.
The recommended soldering conditions for the TLS205B0EJV are: peak temperature 260°C, time above 217°C 30s, and time above 183°C 60s. It is also recommended to use a soldering iron with a temperature range of 350°C to 400°C.
To protect the TLS205B0EJV from ESD, handle the device in an ESD-protected environment, use ESD-protective packaging, and ensure that all equipment and personnel are grounded. Also, consider using ESD-protection devices such as TVS diodes or ESD-protection ICs.
The recommended input capacitors for the TLS205B0EJV are X7R or X5R ceramic capacitors with a capacitance value of 10uF to 22uF. The recommended output capacitors are X7R or X5R ceramic capacitors with a capacitance value of 10uF to 47uF.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS205B0EJV Overview

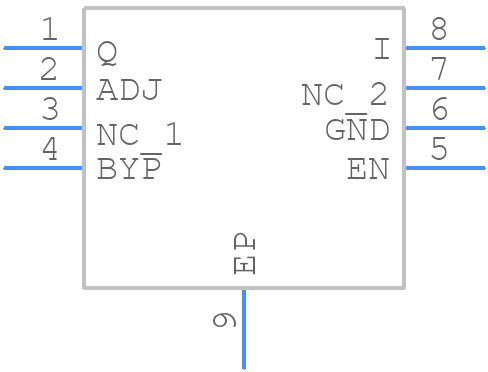

Use the download button to access the TLS205B0EJV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS20,
or try a keyword search, such as Linear Regulator ICs
