TLS810B1LDV50XUMA1 - Infineon

Description: LDO Voltage Regulators LINEAR VOLTAGE REGULATOR

Download TLS810B1LDV50XUMA1 Model

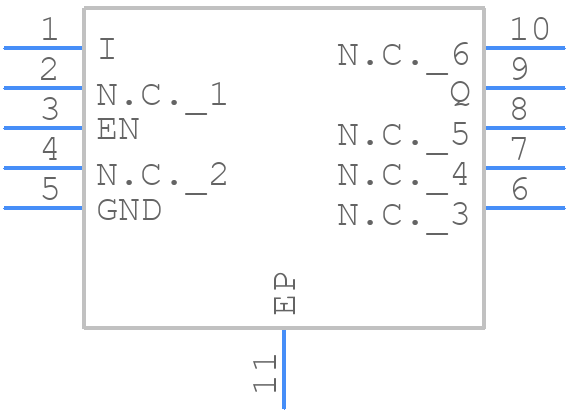

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLS810B1LDV50XUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - TDSON-10
click to zoom
3D Models
TLS810B1LDV50XUMA1 - Infineon  - 3D model - Small Outline No-lead - TDSON-10
click to zoom

TLS810B1LDV50XUMA1 Details

  • Manufacturer Part Number:

    TLS810B1LDV50XUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.2

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.55 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    5.55 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.02%

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.13,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.3 mm

TLS810B1LDV50XUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • Monitor the device's output voltage, current, and temperature. Implement over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP) to prevent damage and ensure reliable operation.
  • Use a low-dropout regulator (LDO) or a switching regulator with a low quiescent current. Optimize the PCB layout to minimize power losses and ensure efficient power delivery.
  • Implement human body model (HBM) and charged device model (CDM) ESD protection measures, such as TVS diodes or ESD protection arrays, to prevent damage from electrostatic discharge.
