TLS835B2ELVXUMA1 footprint, schematic symbol and 3D model by Infineon

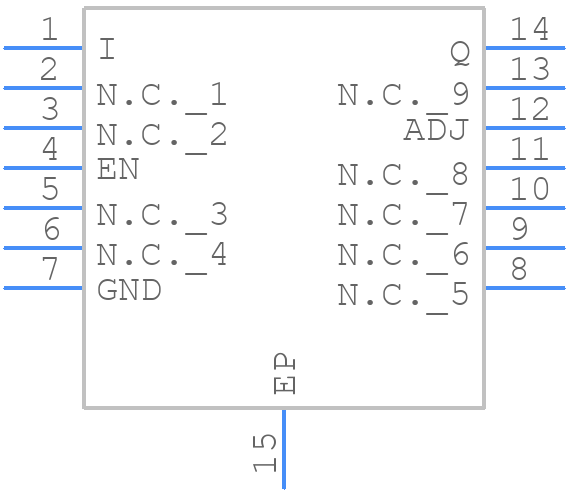

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLS835B2ELVXUMA1
Part Number TLS835B2ELVXUMA1
Manufacturer Infineon
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-SSOP-14
Released Date May 6, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLS835B2ELVXUMA1 Details

Manufacturer Part Number:
TLS835B2ELVXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SSOP-14
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Adjustability:
ADJUSTABLE
Dropout Voltage1-Max:
0.5 V
Dropout Voltage1-Nom:
0.25 V
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Length:
4.9 mm
Line Regulation-Max (%/V):
0.028344
Load Regulation-Max(%):
1%
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
14
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.35 A
Output Voltage1-Max:
6 V
Output Voltage1-Min:
1.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
TSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
1.7 mm
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
