TLS850D0TAV33ATMA1 - Infineon

Description: INFINEON - TLS850D0TAV33ATMA1 - LINEAR VOLTAGE REGULATOR

Download TLS850D0TAV33ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

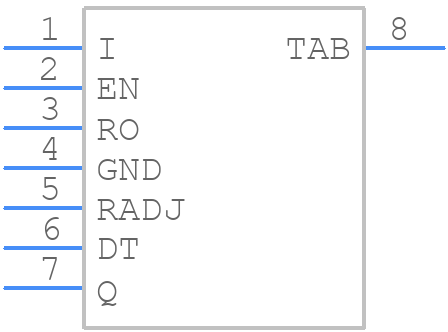

TLS850D0TAV33ATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

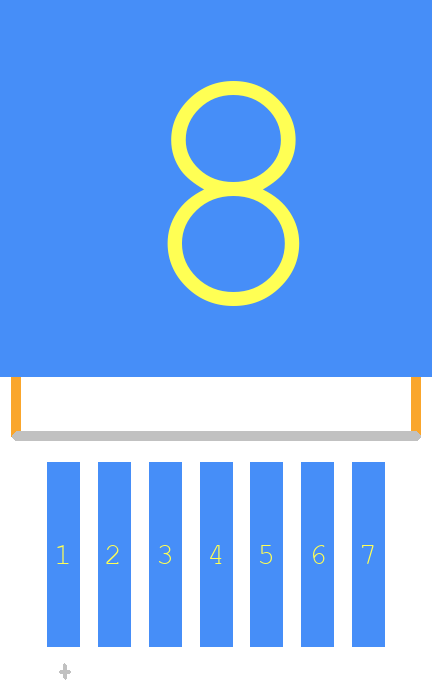

TLS850D0TAV33ATMA1 - Infineon PCB footprint - Other - Other - PG-TO263-7-1
click to zoom
3D Models
TLS850D0TAV33ATMA1 - Infineon - 3D model - Other - PG-TO263-7-1
click to zoom

TLS850D0TAV33ATMA1 Details

  • Manufacturer Part Number:

    TLS850D0TAV33ATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TO-263 , 7 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.43 V

  • Dropout Voltage1-Nom:

    0.43 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.73 V

  • JESD-30 Code:

    R-PSFM-T7

  • JESD-609 Code:

    e3

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.005%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Voltage Tolerance-Max:

    2%

TLS850D0TAV33ATMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for Infineon's TLE985x and TLS850D0' which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The TLS850D0TAV33ATMA1 has an internal overcurrent protection feature that can be enabled by connecting the OCP pin to a suitable resistor and capacitor. The application note AN201 'Overcurrent Protection for Infineon's TLS850D0' provides detailed guidance on implementing overcurrent protection.
  • Although the datasheet specifies a recommended operating voltage range of 5.5V to 18V, the absolute maximum rating for the VCC pin is 20V. Exceeding this voltage can damage the device.
  • Common issues that prevent the device from turning on include incorrect pin connections, insufficient voltage supply, or faulty components. Check the application note AN202 'Troubleshooting Guide for Infineon's TLS850D0' for a step-by-step troubleshooting guide.
  • The TLS850D0TAV33ATMA1 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on thermal management and derating.
