- Part Number TLW-125-05-H-S
- Manufacturer SAMTEC
- Pin Count 25
- Part Category Connector
- Package Category Header, Vertical

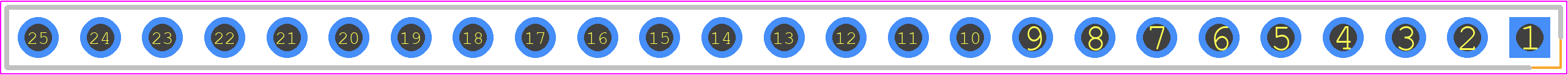

- Footprint Name Header, Vertical - TLW-125-05-H-S
- Released Date Jun 17, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLW-125-05-H-S Details
-
Manufacturer Part Number:
TLW-125-05-H-S
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Samtec Inc
-
YTEOL:
7.7
-
Body Breadth:
0.098 inch
-
Body Depth:
0.06 inch
-
Body Length:
2.5 inch
-
Connector Type:
BOARD CONNECTOR
TLW-125-05-H-S Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the TLW-125-05-H-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the TLW-125-05-H-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
-
The maximum operating temperature for the TLW-125-05-H-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
-
The TLW-125-05-H-S connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors, such as the IP67-rated TLW-125-05-H-S-IP, for applications that require moisture protection.
-
The recommended mating cycle for the TLW-125-05-H-S connector is 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may affect the connector's reliability and performance.
Trust Checks
Community Provided
System Verified
Community Approved
TLW-125-05-H-S Overview
Use the download button to access the TLW-125-05-H-S schematic symbol, PCB footprint, and 3D model.
