TLW-140-06-T-S footprint, schematic symbol and 3D model by SAMTEC

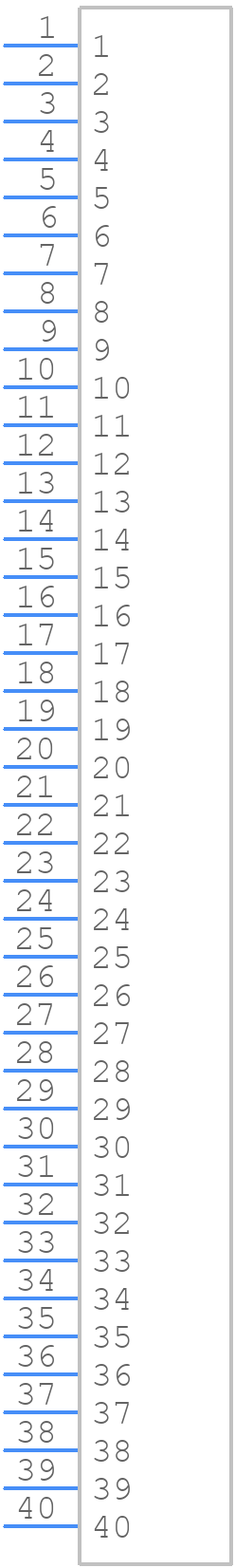

Symbol

click to zoom

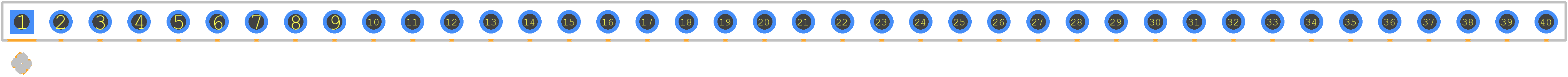

PCB Footprints

TLW-140-06-T-S - SAMTEC PCB footprint - Other - Other - SAMTEC_TLW-140-06-T-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLW-140-06-T-S
Part Number TLW-140-06-T-S
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - SAMTEC_TLW-140-06-T-S
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

TLW-140-06-T-S Details

Manufacturer Part Number:
TLW-140-06-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7.7
Body Breadth:
0.098 inch
Body Depth:
0.06 inch
Body Length:
4 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Rated Current (Power):
5.2 A
Rated Current (Signal):
5.2 A
Terminal Length:
0.135 inch
Terminal Pitch:
0.1 mm
Termination Type:
SOLDER
Total Number of Contacts:
40

TLW-140-06-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TLW-140-06-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TLW-140-06-T-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the TLW-140-06-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
The TLW-140-06-T-S connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors for such applications. However, if you must use the TLW-140-06-T-S in a humid environment, ensure proper sealing and protection to prevent moisture ingress.
Samtec provides recommended PCB layout and footprint guidelines in their datasheet and application notes. It's essential to follow these guidelines to ensure proper mating and reliable operation of the connector.

Trust Checks

System Verified

TLW-140-06-T-S Overview

Use the download button to access the TLW-140-06-T-S schematic symbol and PCB footprint.
