TM0508A/6 - LUMBERG

Description: Socket; DIN mini; female; PIN: 6; shielded; THT; on PCBs; angled 90°

Download TM0508A/6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TM0508A/6 - LUMBERG - PCB symbol
click to zoom

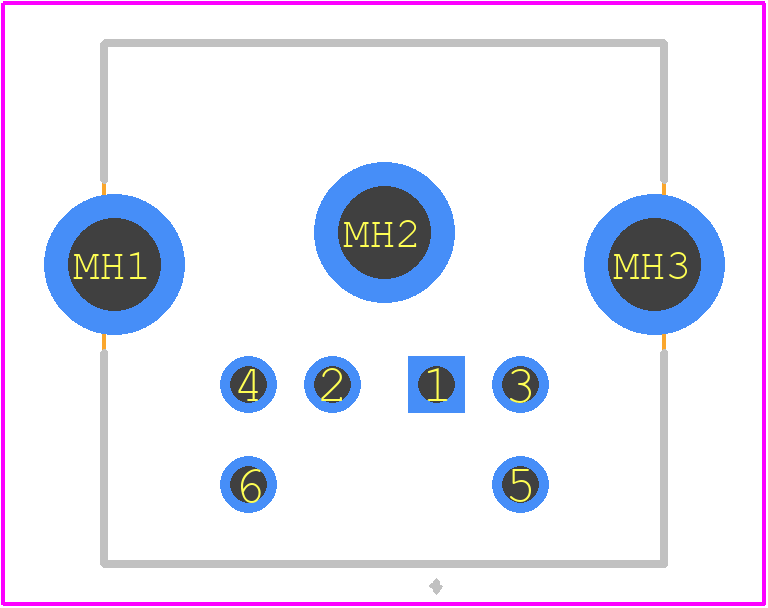

PCB Footprints
TM0508A/6 - LUMBERG PCB footprint - Other - Other - TM0508A/6-1
click to zoom
3D Models
TM0508A/6 - LUMBERG - 3D model - Other - TM0508A/6-1
click to zoom

TM0508A/6 Details

  • Manufacturer Part Number:

    TM0508A/6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Lumberg Connect GmbH

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO
