The recommended torque for the screw terminals of TM5RJ1-4848(50) is 0.5 N·m to 1.5 N·m. It's essential to follow this torque range to ensure reliable connections and prevent damage to the terminals.
Yes, the TM5RJ1-4848(50) is designed to withstand vibrations up to 10 Hz to 2000 Hz, with an amplitude of 1.5 mm. However, it's recommended to perform additional testing and validation to ensure the connector meets the specific requirements of your application.
The TM5RJ1-4848(50) has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating.
The TM5RJ1-4848(50) has an operating temperature range of -40°C to 105°C. It's essential to ensure the connector is used within this range to maintain its performance and reliability.
While the TM5RJ1-4848(50) is designed for use with AWG 24-20 cables, it's possible to use it with other cable sizes. However, it's crucial to ensure the cable meets the connector's specifications and that the assembly is properly tested and validated to ensure reliable performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TM5RJ1-4848(50) Overview

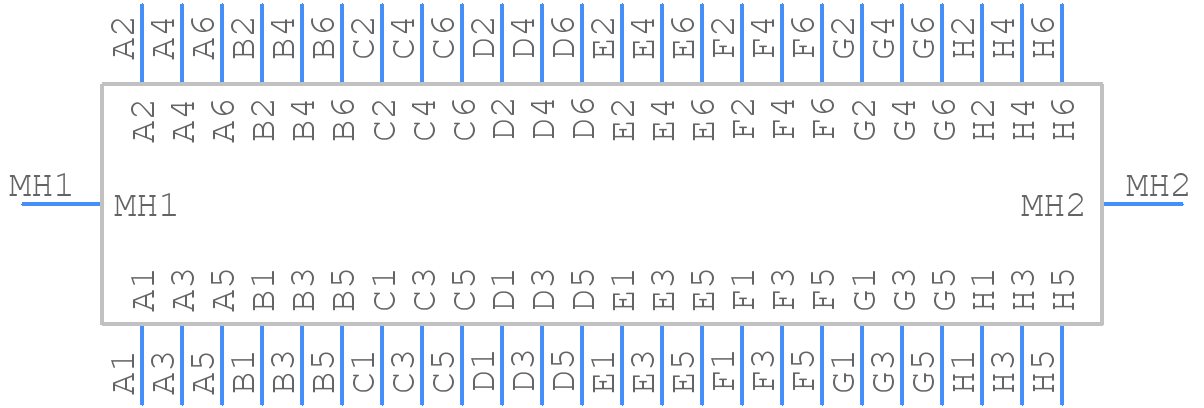

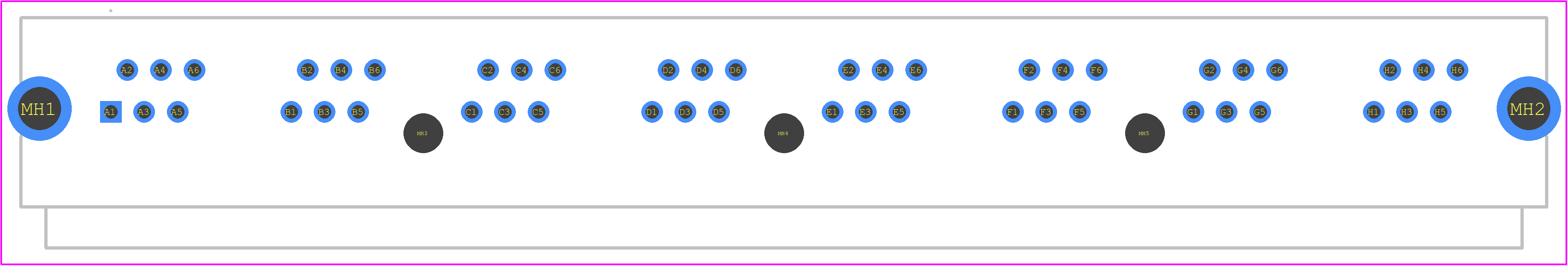

Use the download button to access the TM5RJ1-4848(50) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TM5RJ,
or try a keyword search, such as Telecom and Datacom Connectors
