Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TMA0515D is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
To ensure reliability in high-temperature applications, it's crucial to follow Traco Power's derating guidelines for temperature and output power. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance.
Traco Power recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, rated for the input voltage range. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ensure stable operation.
Yes, the TMA0515D can be used in a redundant or parallel configuration to achieve higher output power or redundancy. However, it's essential to follow Traco Power's guidelines for parallel operation and to ensure that the modules are properly synchronized and configured to avoid oscillations or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMA0515D Overview

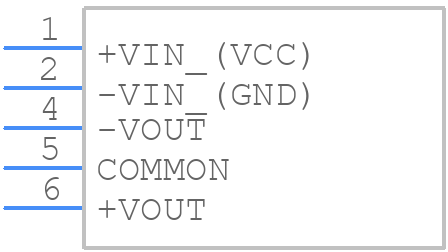

Use the download button to access the TMA0515D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMA05,
or try a keyword search, such as Power Supply Modules
