TMD26203M - ams OSRAM

Description: TMD26203M Proximity Sensor

Download TMD26203M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

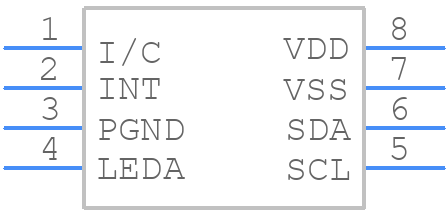

TMD26203M - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
TMD26203M - ams OSRAM PCB footprint - Other - Other - TMD26203M-1
click to zoom
3D Models
TMD26203M - ams OSRAM - 3D model - Other - TMD26203M-1
click to zoom

TMD26203M Details

  • Manufacturer Part Number:

    TMD26203M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ams OSRAM Group

  • Additional Feature:

    DUAL OUTPUT

  • Body Breadth:

    2 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    -1-20mA

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR, IR

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

TMD26203M Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TMD26203M can be found in the application note AN000633, which provides guidelines for optimal placement, routing, and thermal management.
  • Calibration of the TMD26203M involves adjusting the sensitivity and threshold settings to suit the specific application. The datasheet provides a calibration procedure, and additional guidance can be found in the application note AN000634.
  • The TMD26203M is specified to operate from -40°C to 85°C, but it can be extended to 105°C with reduced performance. Consult the datasheet for detailed temperature characteristics.
  • Yes, the TMD26203M is designed to operate in humid environments, but it's essential to follow proper PCB design and assembly guidelines to prevent moisture ingress. Consult the datasheet and application notes for more information.
  • The TMD26203M communicates via an I2C interface. The datasheet provides detailed information on the I2C protocol, register addresses, and data formats. Additionally, example code and libraries are available for popular microcontrollers.
