The recommended PCB layout and land pattern can be found in the ams OSRAM Group's application note AN000553, which provides detailed guidelines for designing a reliable and efficient PCB layout for the TMD37024VCM.
The TMD37024VCM has a built-in ambient light cancellation circuit that helps to reduce the impact of ambient light on the proximity sensing function. Additionally, the device's optical filter helps to block out visible and infrared light, allowing it to focus on the near-infrared spectrum used for proximity detection.
The maximum detection distance of the TMD37024VCM depends on various factors such as the target size, reflectivity, and orientation. However, according to the datasheet, the device can detect proximity up to 20 cm (7.9 in) with a high degree of accuracy.
Yes, the TMD37024VCM has a low-power mode that can be enabled to reduce power consumption. In this mode, the device's power consumption is significantly reduced, making it suitable for battery-powered applications. The low-power mode can be enabled through the device's I2C interface.
The TMD37024VCM uses a proprietary algorithm to detect and track multiple targets or objects in the detection zone. The device can detect up to 4 targets simultaneously and provide distance information for each target. However, the accuracy of the distance measurement may be affected by the presence of multiple targets.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMD37024VCM Overview

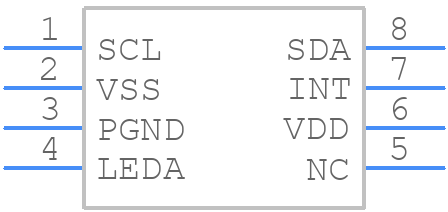

Use the download button to access the TMD37024VCM schematic symbol, PCB footprint, and 3D model.
