TME-534-Q-T/R - Diptronics

Description: Tactile Switches SMT Type (H=1.5mm) 5.2*5.2 50 mA 12 VDC - 25 C to + 70 C

Download TME-534-Q-T/R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TME-534-Q-T/R model

Email notifications will be applied after download.

Send part feedback

Symbol

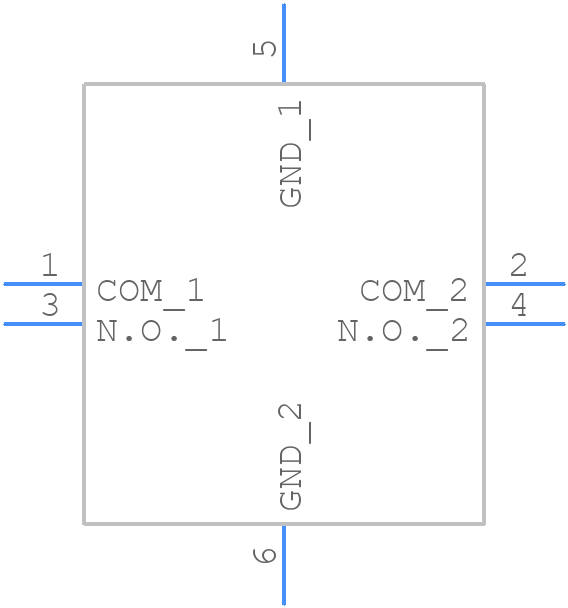

TME-534-Q-T/R - Diptronics - PCB symbol

PCB Footprints

TME-534-Q-T/R - Diptronics PCB footprint - Other - Other - TME-534-Q-T/R-1

3D Models

TME-534-Q-T/R - Diptronics - 3D model - Other - TME-534-Q-T/R-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TME-534-Q-T/R
Part Number TME-534-Q-T/R
Manufacturer Diptronics
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - TME-534-Q-T/R-1
Released Date Apr 13, 2026
Last Modified Date Apr 13, 2026 8:36 AM UTC
Pinout / Pin List Click Here (Member Only)

TME-534-Q-T/R Details

Manufacturer Part Number:
TME-534-Q-T/R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Diptronics Manufacturing Inc
YTEOL:
7
Switch Type:
KEYPAD SWITCH

Trust Checks

Community Provided

System Verified

Community Approved

TME-534-Q-T/R Overview

Use the download button to access the TME-534-Q-T/R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TME-5, or try a keyword search, such as Keypad Switches
