TMF8801-1B - ams OSRAM

Description: Distance Sensor Modules TMF8801-1B OLGA12 LF T&RDP

Download TMF8801-1B Model

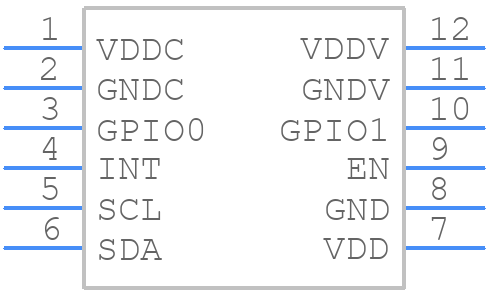

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMF8801-1B - ams OSRAM PCB footprint - Other - Other - TMF8801-1B-2
click to zoom
3D Models
TMF8801-1B - ams OSRAM  - 3D model - Other - TMF8801-1B-2
click to zoom

TMF8801-1B Details

  • Manufacturer Part Number:

    TMF8801-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-12

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    6

  • Body Breadth:

    2.2 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3.6 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Channels:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Termination Type:

    SOLDER

TMF8801-1B Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the TMF8801-1B near the edge of the board to minimize thermal resistance. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal via array can be used to further improve heat dissipation.
  • To ensure accurate distance measurements, it's essential to calibrate the sensor using a reference target at a known distance. The sensor should be operated within its specified temperature range, and the target should be perpendicular to the sensor's optical axis. Additionally, the sensor's output should be filtered to reduce noise and averaged to improve accuracy.
  • The TMF8801-1B can tolerate ambient light intensities up to 100,000 lux, which is equivalent to direct sunlight. However, it's recommended to use optical filters or shielding to reduce ambient light interference and ensure accurate distance measurements.
  • The TMF8801-1B is specified to operate up to 85°C, but it can be used in high-temperature environments with some limitations. The sensor's accuracy and range may be affected at temperatures above 85°C. It's recommended to consult with ams OSRAM Group's application engineers to determine the feasibility of using the TMF8801-1B in high-temperature environments.
  • The TMF8801-1B communicates via a standard I2C interface. The sensor's output can be read using a microcontroller or processor with an I2C peripheral. The sensor's datasheet provides detailed information on the I2C protocol and register mapping. Additionally, ams OSRAM Group provides software development kits (SDKs) and example code to simplify the integration process.
