Ams OSRAM recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the package should be connected to a heat sink or a thermal interface material to ensure efficient heat dissipation.
To ensure accurate distance measurement, it's essential to calibrate the sensor using the provided API and follow the recommended calibration procedure. Additionally, the sensor should be mounted at a 90-degree angle to the target surface, and the target surface should be Lambertian (diffuse reflector) to minimize errors.
The TMF8805-1B can tolerate ambient light intensities up to 100,000 lux. However, it's recommended to use an optical filter or a sunlight shield to minimize interference from direct sunlight or high-intensity artificial lighting.
The TMF8805-1B is rated for operation up to 85°C. However, it's recommended to derate the sensor's performance and accuracy at temperatures above 70°C. For high-temperature applications, ams OSRAM recommends using a thermal interface material and a heat sink to maintain a stable temperature.
To handle noise and interference, ams OSRAM recommends using a low-pass filter or a median filter to smooth out the output signal. Additionally, ensuring a stable power supply and minimizing electromagnetic interference (EMI) in the system design can help reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMF8805-1B Overview

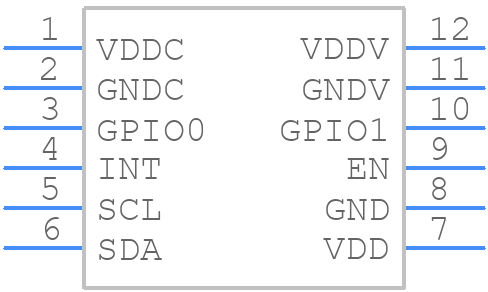

Use the download button to access the TMF8805-1B schematic symbol, PCB footprint, and 3D model.
