TMF8820-1AM - ams OSRAM

Description: multi-zone Time-of-Flight Sensor

Download TMF8820-1AM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

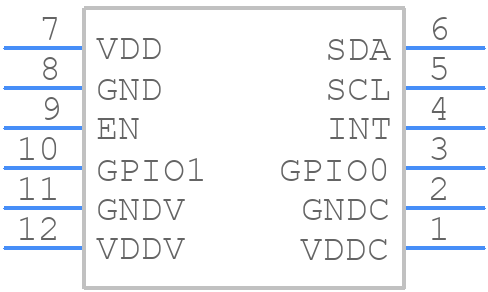

PCB Footprints
TMF8820-1AM - ams OSRAM PCB footprint - Other - Other - OLGA12
click to zoom
3D Models
TMF8820-1AM - ams OSRAM  - 3D model - Other - OLGA12
click to zoom

TMF8820-1AM Details

  • Manufacturer Part Number:

    TMF8820-1AM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-12

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    6

  • Body Breadth:

    2 mm

  • Body Height:

    1.4 mm

  • Body Length or Diameter:

    4.6 mm

  • Housing:

    UNSPECIFIED

  • Measurement Range-Max (mm):

    5000 mm

  • Measurement Range-Min (mm):

    10 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Channels:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

TMF8820-1AM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the TMF8820-1AM involves keeping the sensor and its associated components away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the connections between the sensor and the microcontroller. Ams OSRAM provides a recommended PCB layout in their application note AN00145.
  • Calibration of the TMF8820-1AM involves adjusting the sensor's offset and gain values to compensate for variations in the optical and electrical components. Ams OSRAM provides a calibration procedure in their application note AN00144, which involves measuring the sensor's output at different distances and adjusting the offset and gain values accordingly.
  • The TMF8820-1AM can tolerate ambient light intensities up to 100,000 lux, which is equivalent to direct sunlight. However, high ambient light intensities can affect the sensor's accuracy and range. Ams OSRAM recommends using optical filters or shielding to reduce the impact of ambient light on the sensor's performance.
  • The TMF8820-1AM is rated for operation up to 85°C, but its accuracy and range may be affected at high temperatures. Ams OSRAM recommends using thermal management techniques, such as heat sinks or thermal interfaces, to keep the sensor's temperature below 70°C for optimal performance.
  • The TMF8820-1AM communicates with a microcontroller using a standard I2C interface. Ams OSRAM provides a detailed description of the sensor's register map and communication protocol in their datasheet and application notes. Engineers can use a microcontroller's built-in I2C peripheral to communicate with the sensor.
