TMF8821-1AM - ams OSRAM

Description: multi-zone Time-of-Flight Sensor

Download TMF8821-1AM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

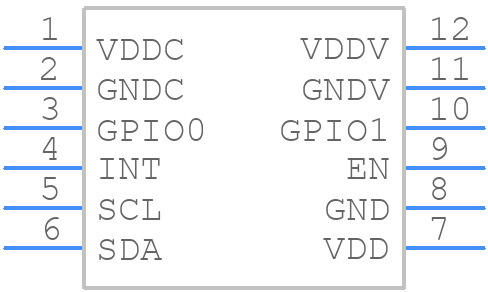

TMF8821-1AM - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
TMF8821-1AM - ams OSRAM PCB footprint - Other - Other - OLGA12 _2023
click to zoom
3D Models
TMF8821-1AM - ams OSRAM - 3D model - Other - OLGA12 _2023
click to zoom

TMF8821-1AM Details

  • Manufacturer Part Number:

    TMF8821-1AM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-12

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    6

  • Body Breadth:

    2 mm

  • Body Height:

    1.4 mm

  • Body Length or Diameter:

    4.6 mm

  • Housing:

    UNSPECIFIED

  • JESD-609 Code:

    e3

  • Measurement Range-Max (mm):

    5000 mm

  • Measurement Range-Min (mm):

    10 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Channels:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TMF8821-1AM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the TMF8821-1AM can be found in the application note 'TMF8821-1AM PCB Layout Guidelines' provided by ams OSRAM Group. It includes guidelines for component placement, routing, and thermal management.
  • Calibration of the TMF8821-1AM involves adjusting the sensor's offset and gain values to compensate for variations in the optical and electrical components. The calibration process is described in the datasheet and requires a calibration target with a known reflectivity.
  • The TMF8821-1AM can operate in ambient light intensities up to 100,000 lux, making it suitable for use in outdoor and high-ambient-light environments.
  • Yes, the TMF8821-1AM can be used for gesture recognition and other advanced applications that require high-accuracy distance measurements. The sensor's high-resolution distance data and fast measurement rates enable the detection of complex gestures and movements.
  • Yes, the TMF8821-1AM is designed to operate over a wide temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMF8821-1AM Overview

Use the download button to access the TMF8821-1AM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMF88, or try a keyword search, such as Linear Position Sensors
