The recommended PCB layout for the TMF8828-1AM involves keeping the sensor and the MCU close together, using a 4-layer PCB with a solid ground plane, and minimizing the distance between the sensor and the antenna. Additionally, it's recommended to use a dedicated power supply for the sensor and to decouple it from the MCU's power supply.
Calibration of the TMF8828-1AM involves adjusting the sensor's offset and gain values to compensate for variations in the manufacturing process and environmental factors. This can be done using the sensor's built-in calibration routine, which involves taking measurements at multiple distances and angles, and then calculating the offset and gain values based on these measurements.
The TMF8828-1AM is specified to operate over a temperature range of -40°C to 85°C, but it's recommended to operate it within a range of 0°C to 60°C for optimal performance and accuracy.
The TMF8828-1AM is not designed to operate in humid or wet environments, and exposure to moisture can affect its performance and accuracy. If you need to use the sensor in a humid or wet environment, you'll need to take additional precautions such as using a waterproof coating or enclosure.
Troubleshooting issues with the TMF8828-1AM involves checking the sensor's power supply, clock signal, and data output, as well as verifying that the sensor is properly connected to the MCU and that the firmware is correctly configured. You can also use the sensor's built-in diagnostic modes to help identify the source of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMF8828-1AM Overview

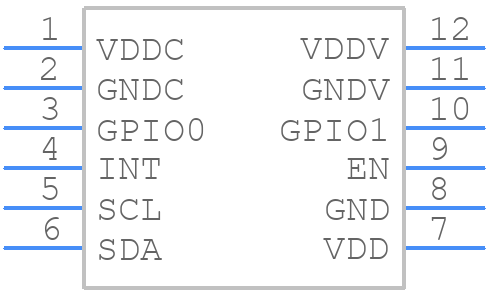

Use the download button to access the TMF8828-1AM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMF88,
or try a keyword search, such as Linear Position Sensors
