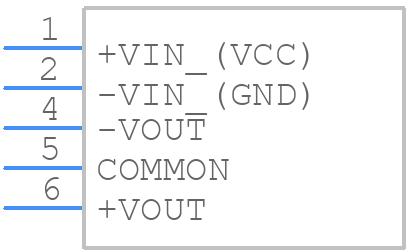

TMH0505D - Traco Power

TMH0505D Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
• Can I use the TMH0505D in a high-vibration environment?
  Yes, the TMH0505D is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
• How do I ensure the module's reliability in high-temperature applications?
  To ensure reliability in high-temperature applications, it's crucial to follow Traco Power's derating guidelines for temperature and output power. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance.
• What is the recommended input capacitor type and value for the TMH0505D?
  Traco Power recommends using a low-ESR ceramic capacitor with a value of 10-22 μF and a voltage rating of at least 50 V. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
• Can I use the TMH0505D in a redundant or parallel configuration?
  Yes, the TMH0505D can be used in a redundant or parallel configuration to achieve higher output power or redundancy. However, it's essential to follow Traco Power's guidelines for parallel operation and to ensure that the modules are properly synchronized and configured to avoid oscillations or instability.
