Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TMH0515D is designed to withstand high-vibration environments. It is compliant with IEC 60068-2-6, which specifies vibration testing for electrical components. However, it's recommended to follow proper mounting and screw torque procedures to ensure the module is securely fastened to the PCB.
The TMH0515D has an internal input filter that meets the requirements of EN 55022 Class A. However, the system's EMC performance also depends on the PCB layout, cable routing, and other components. It's recommended to perform EMC testing with the module installed in the system to ensure compliance with relevant standards.
The maximum allowed capacitance on the output of the TMH0515D is 2200 μF. Exceeding this value may affect the module's stability and performance. It's recommended to follow the recommended output capacitance values specified in the datasheet to ensure proper operation.
Yes, the TMH0515D can be used in a redundant or parallel configuration to achieve higher power ratings or redundancy. However, it's recommended to follow Traco Power's application notes and guidelines for parallel and redundant operation to ensure proper synchronization and control of the modules.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMH0515D Overview

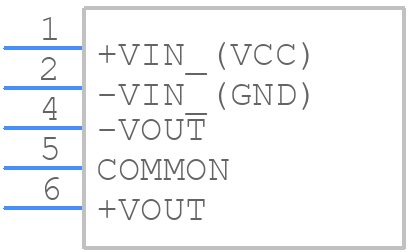

Use the download button to access the TMH0515D schematic symbol, PCB footprint, and 3D model.
