Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TMH1205D is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
The TMH1205D meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, engineers should follow the recommended layout and assembly guidelines, and ensure that the module is used within its specified operating conditions.
The maximum allowable capacitance for the output filter is 47μF. Exceeding this value may affect the module's stability and performance. Engineers should ensure that the output filter capacitance is within the recommended range to ensure reliable operation.
Yes, the TMH1205D can be used in a redundant configuration to ensure high availability and reliability. However, engineers should ensure that the modules are properly synchronized and that the system is designed to handle the redundancy requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMH1205D Overview

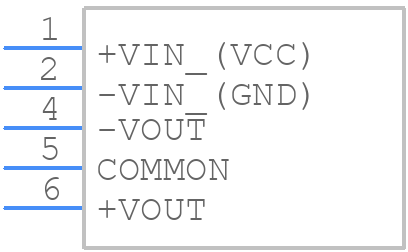

Use the download button to access the TMH1205D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMH12,
or try a keyword search, such as Power Supply Modules
